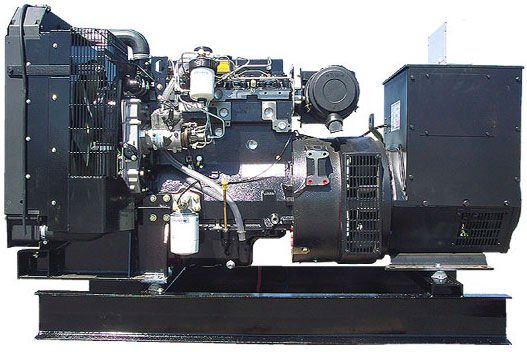

Perkins generator set 13kv-1500kva

Posted by Olumide Afuwape on Wednesday April 9, 2014:

Genset Specifications

Ratings at NTP, 415/240V, 3 phase, 50Hz, 1500 rpm powered by Perkins Diesel Engine (UK) coupled to a Leroy Somer Alternator (France), mounted on fabricated steel base with built in Fuel tank. Set comes complete with Radiator, Governor, Battery, Silencer, Control Panel, Low oil pressure/ High engine Temp Shutdowns, e.t.c.

GENERATING SET SPECIFICATION GAS

Ratings at NTP 400v/3ph&N/50Hz, Radiator base frame mounted with engine driven cooling fan, dry air cleaner, single gas solenoid, engine control panel, deep sea controls, high coolant temperature and low oil pressure, generator overload, over speed, low/high gas pressure shut down, Mecc Alte single bearing alternator, AVMs between engine/alternator and base frame, loose exhaust silencer supplied and battery charger included.
Gas: termination at machine periphery. It is assumed that gas will be supplied at a positive pressure in the range of 20 to 50 mbar under all conditions of load. See installation.
Electricity: connection to machines CB and any control, signal and call to run cables brought into the control panel. See installation.
Exhaust: exhaust system terminates at tailpipe of silencer. Please contact Servipower Company Ltd if the exhaust is to be extended as excess back pressure drops are deleterious to the engine.

Phone: 08023465867
State: Lagos
